FlySky FS-i6 2.4GHz 6-Channels Transmitter with FS-iA6 Receiver for Multi-copter Drone

Features:
– Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels, each radio system uses 16 different channels and 160 different types of hopping algorithm.
– This radio system uses a high gain and high quality multi directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio transmission.
– Each transmitter has a unique ID, when binding with a receiver, the receiver saves that unique ID and can accepts only data from the unique transmitter. This avoids picking another transmitter signal and dramatically increase interference immunity and safety.
– This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption.
– AFHDS2A system has the automatic identification function, which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
– AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance.

Transmitter Features:
Brand Name: Flysky
Channels: 6 Channels
Model Type: Glider/Heli/Airplane
Stick Model: Model 2(Left Throttle)
RF Range: 2.40-2.48GHz
Bandwidth: 500KHz
Band: 142
RF Power: Less Than 20dBm
2.4GHz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output:PPM
Charger Port: No
ANT length: 26mm x 2(dual antenna)
Weight: 392g
Power: 6V 1.5AA*4
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
Size: 174x89x190mm
On-line update: yes
Color: Black
Certificate: CE0678,FCC
Model Memories: 20

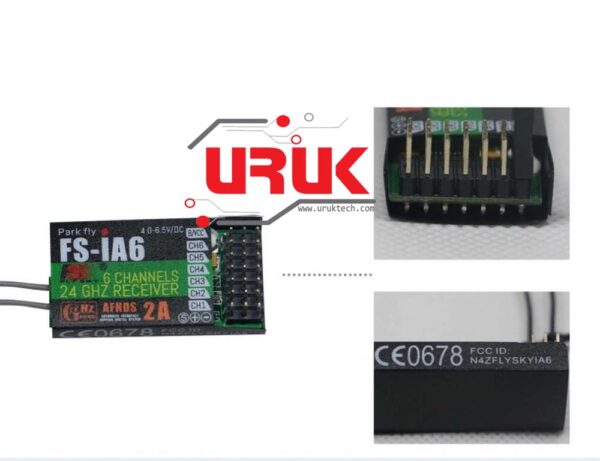

Receiver  FS-iA6 Features:
Channels: 6 Channels
Model Type: Fixed-wing/Glider/Airplane
RF Range: 2.40-2.48GHz
Bandwidth: 500KHz
Band: 142
RF power: less than 20dBm
RF receiver sensitivity: -105dBm
2.4GHz System: AFHDS 2A
Code Type: GFSK
ANT length: 26mm
Weight:6.4g
Power:4.0-6.5V
Size: 40.4×21.1×7.35mm
Color: Black
Certificate: CE,FCC
i-BUS port: NO
Data Acquisition port: NO

Packing Includes
1 x FS-i6 transmitter
1 x FS-iA6 Receiver
1 x Manual CD
