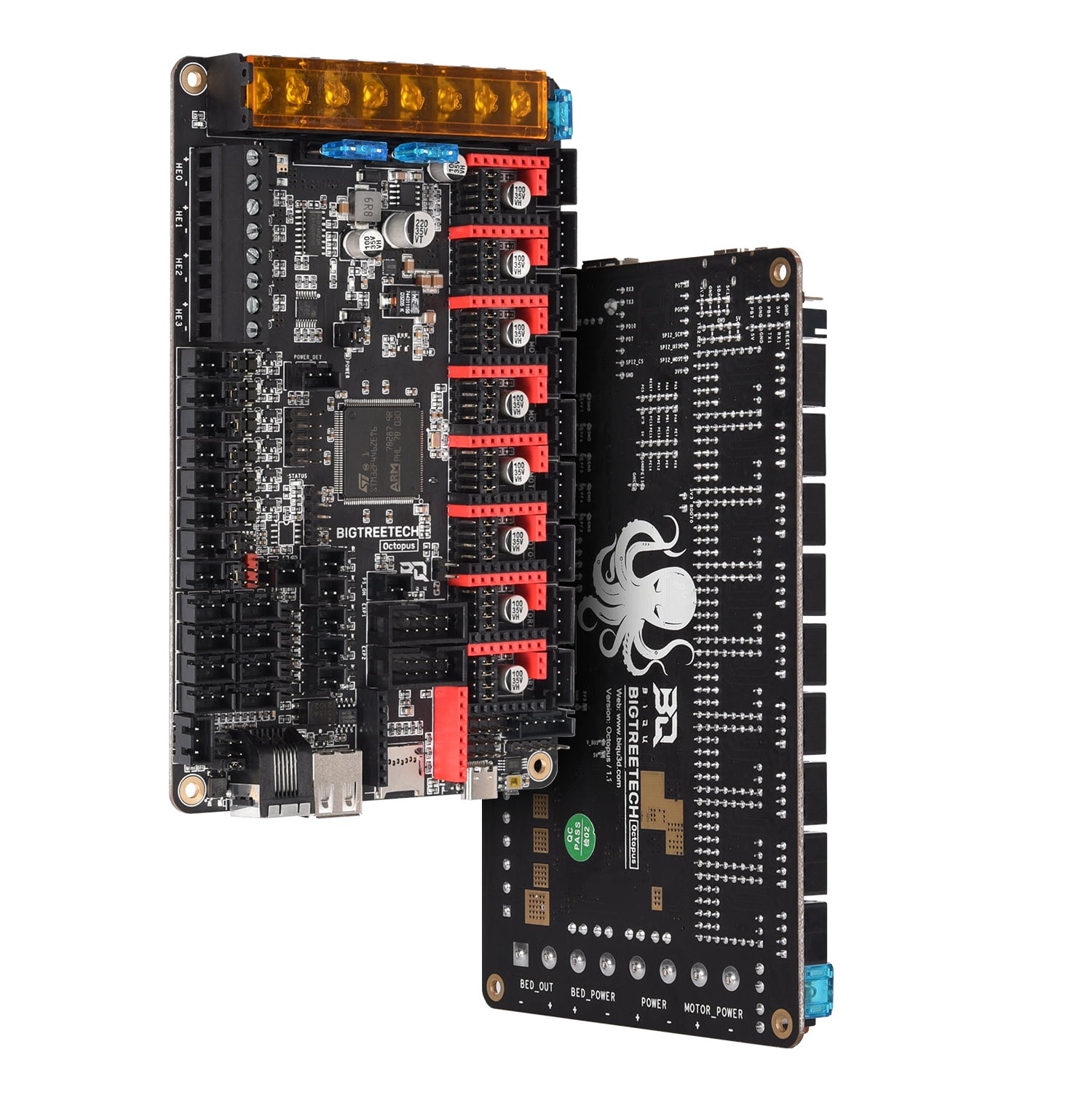

BIGTREETECH Octopus

Description

BIGTREETECH Octopus is a very powerful motherboard with 8 stepper driver ports, so this motherboard can control up to 8 different axes. This feature is especially suitable for multicoloured printing and tool changers, for the use of different tools / modules such as different 3D print heads, laser engraving, laser cutting etc. All fantasies and ideas of modifications can be realised.

The mainboard is compatible with Klipper, Raspberry and Marlin open-source software.

180 Mhz ARM-Cortex-M4 CPU

BIGTREETECH Octopus V1.0 uses a 32-bit chip from the ARM Cortex-M4 series STM32F446ZET6 with a core frequency of 180 MHz, which offers enough power to realise even the most demanding applications and ideas.

Firmware upgrade via SD card

Update the configuration firmware from the SD card. This method is simple, convenient, and efficient.

Compatible stepper driver interfaces: SPI, UART, STEP / DIR

Matching screens:

• LCD display (LCD12864, LCD2004 etc.)
• TFT touch screens

Fan connections:

• 6 x controllable PWM fans
• 2 x normal fans
• 3 x adjustable voltages for the fans (5V, 12V and 24V)

Other interfaces:

• 8 x stepper driver connections
• Raspberry PI Interface
• CAN BUS, SPI and I2C for extensions
• USB-C
• Dual Z-axis
• 4 x heating cartridge connections
• RGB LED
• WiFi interface for ESP8266 based modules
• BL-Touch and other auto-leveling upgrades

Other features:

• Stallguard for sensorless homing
• Protected thermistor connections
• On-board EEPROM
• High power MOSFET
• Support of automatic shutdown after printing and resume print

For more information, please visit: https://github.com/bigtreetech/BIGTREETECH-OCTOPUS-V1.0
