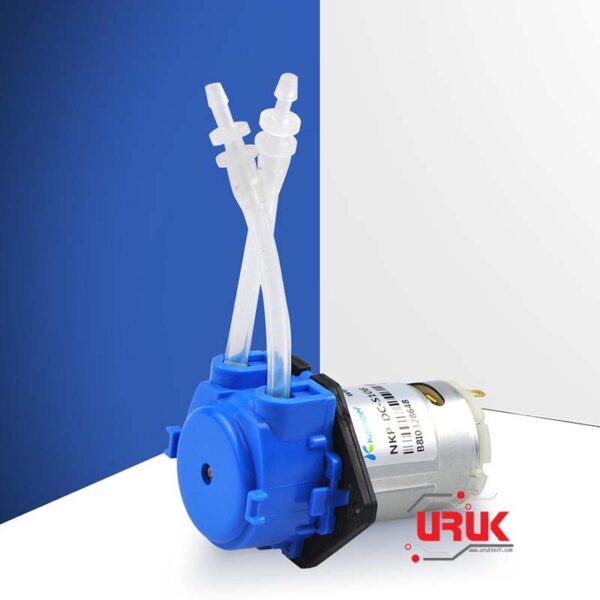

Dosing / Injecting Pump 12V DC

Features:

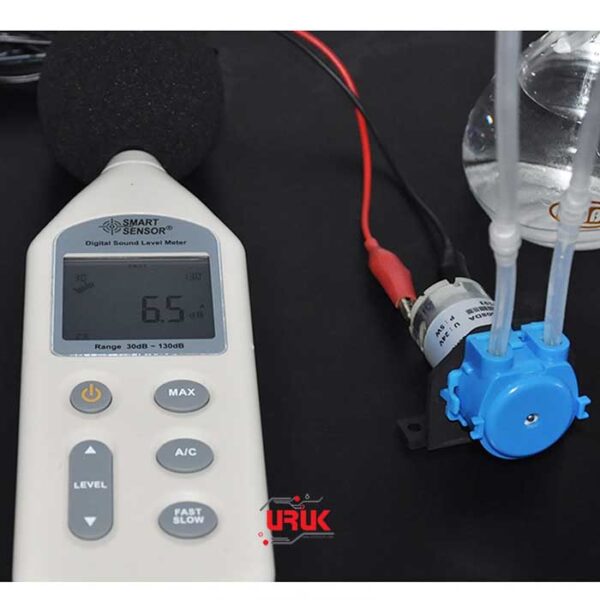

• Ultra-silent
• Maintenance-free
• Positive inversion
• Zero pollution
• Accurate repeatability
• Pump head adopts buckle design without screw.
• Easy to clean and maintain.
• Support CW and CCW, switching power supply positive and negative pole
• Controllable flow direction, you can control the flow direction by the positive and negative connect.
• No valves and seals, convenient hose replacement

Specifications:
Operating Voltage: 12 DC
Motor type: Permanent Magnet
Head Configuration: Peristaltic
Medium: Liquid
Roller: 3 rotors
Length: 175mm (49.5mm exposed)
Max. Static Suction Lift: 2 mH2O
Max. Hydraulic Head: 2 mH2O
Flow: 5.2~60 ml/min
Motor: DC motor
Tube Material: Silicone tube
Pump Head: ABS, Engineering plastic
Working Environment Temperature: 0~40℃
Working Environment Relative Humidity: ＜80℃
Weight: 110g
Mounting plate: Straight plate

Applications:

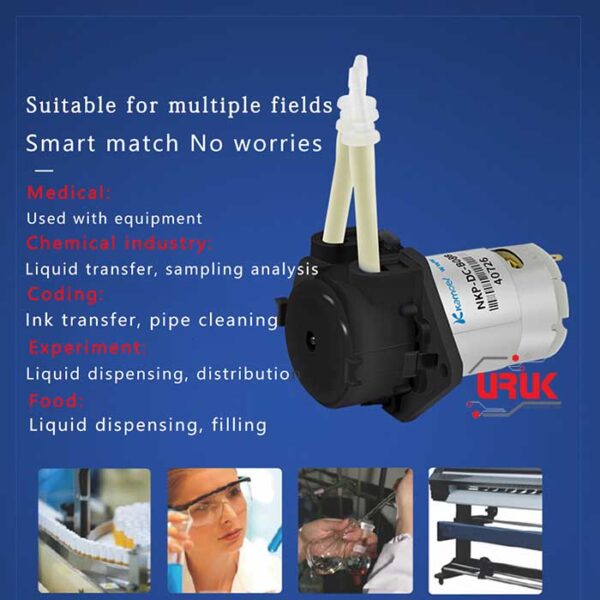

Widely used in the field of experiment, medical, biochemical analysis, pharmaceuticals, fine chemicals, biotechnology, food, environmental protection, family, etc.

Package Includes
1 x Dosing Pump
