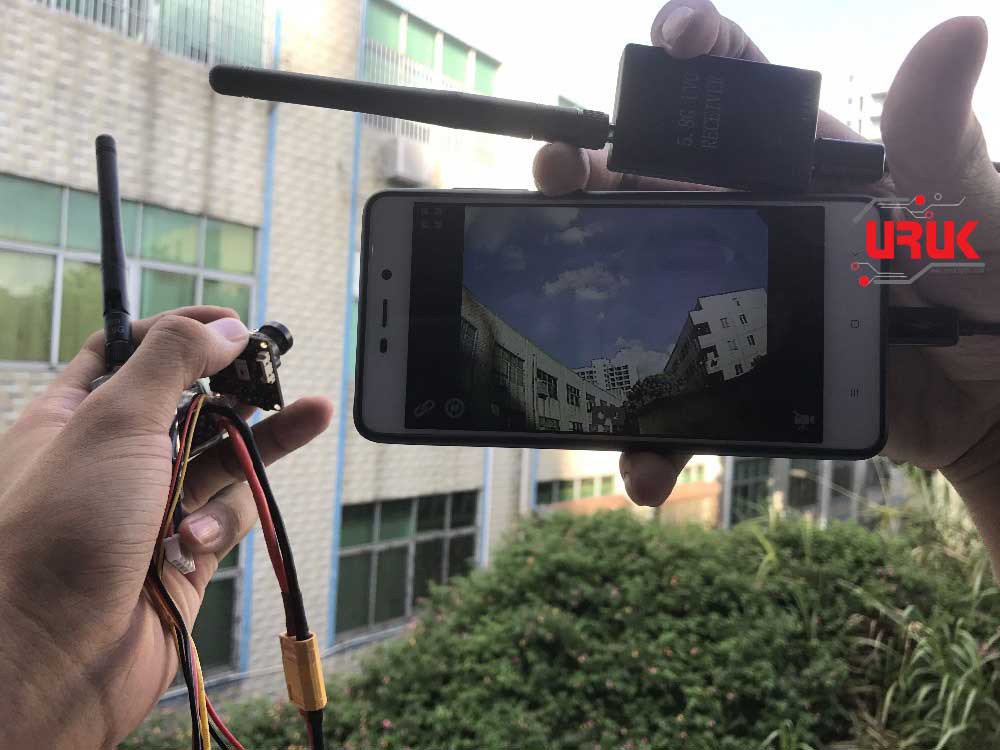

FPV Camera with 5.8GHz transmitter and UVC Receiver for OTG Smartphones or PC

Camera Features:
– Support touch switch select channel frequency group.
– Support NTSC / PAL switch, support vertical inverted image switch.
– Support VTX power switchable
– Wide lens angle.
– Omni directional clover antenna
– Miniature and light design.

Camera Specifications:
Model: HC48DS AIO FPV VTX Camera
Output power: 25 mw / 100 mw switchable
Camera resolution: 600TVL
Frequency Band: 5362-5945 MHz
Channel customers: 48
Modulation type: FM
Channel SEL: touch switch
Channel Show: CH1 – CH8 channel show with 8 LEDS and A-F bands
Frequency control: PLL
ALL harmonics: Max-50dBm
Frequency Stability: +/- 100 KHz (Type)
Frequency precision: +/- 200 KHz (type)
Channel carrier error: 1dB
Antenna Port: 50
Input format: NTSC
Sensor: NTSC: 640×480 1/4 CMOS
Objective angel: H: 120 degrees / V: 100 degrees
Base band interface: (P1.27 * 2)
Supply voltage: 3.3-5.5V
Operating temperature: -10 degrees + 60 degrees
Weight: 4.1g

5.8GHz UVC Receiver
In the mobile phone can be put into the double screen, glasses, experience from the perspective of the first person flight. This is the newest version, add auto sweep and matc frequency, Graphical interface, Snow screen 0.1s Delay.  Sail model of affection and dedication, support any flight control, 150 frequency points + automatic sweep frequency + spectrum instrument graphical interface + snow display +…… more simple and beautiful appearance.  Original 150 point full frequency band scan 1500 times to calculate the intensity of RSSI, locking the most accurate frequency. We increase the channel to 150, the accuracy is 2m, 2m is also the highest, and 2m basic can lock ninety-five percent signal points, which is the highest accuracy of the chip.  With a high accuracy, then the abstract radio, this thing is the mobile spectrum instrument, you can detect the quality of the antenna, the transmitter to do horizontal comparison, the factories electromagnetic environment testing, aircraft, etc.

Specifications:
Suit for android support UVC
Use environment: open, without shelter, without interference
Frequency range: 5645MHz~5945MHz
Resolution: 640ء480 30fps
Operating current: USB 5V
Suitable temperature range: -10~65 DEG C

Smartphone App
https://play.google.com/store/apps/details?id=labsp.android.viewer

The UVC receiver needs to meet the following conditions:
– Android phone
– The phone supports OTG function
– Support all Qualcomm range of CPUs
– Support Kirin 950CPU and higher CPU
– Support MediaTek X20CPU and higher CPU
– Apple phone is not supported

PC usage:

1. Connect PC with USB line
2. Install AMCP camera software, (WIN10) open the camera. Or MP ground station.
3. After the airborne map transmission device power, in the picture transmission, long press 3 seconds function keys, automatically search frequency points, and automatically lock the signal strong frequency point.

Package Includes:
1 x FPV Camera
1 x UVC Receiver
