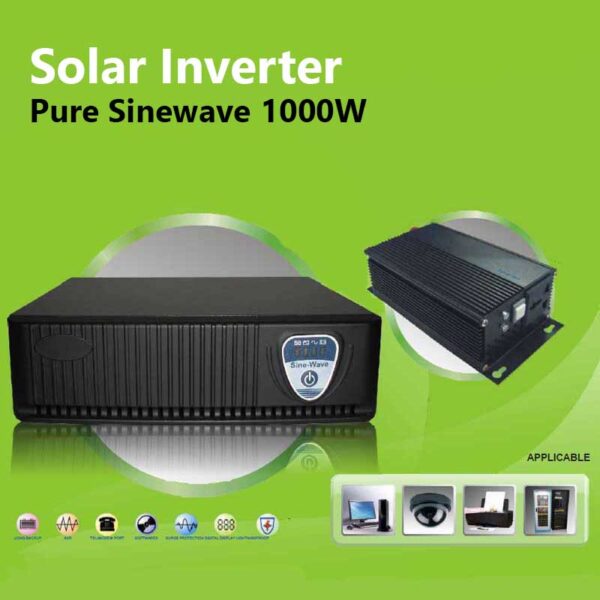

Pure Sinewave Solar Inverter with Charger 24VDC 1000W

This inverter mainly applied to solar system & wind turbine systems where it adopts superior technologies and is designed with the highest standards in the industry. The high frequency structure reduces the size of the inverter and achieves the highest power density in the market. The unique N+X parallel redundancy feature maximizes the flexibility and expansibility of integrating additional Inverter units in the future. Designed for diverse applications, MAN-HF Inverter promises to fulfill the demands from home to heavy-duty industrial environment.

Features

• High frequency switching technology for compact size and light weight.
• High power density design (up to Watts/In for InverMax 1000)
• Pure sine wave output (THD<3%) for wide range of applications and harsh environment Input/output isolated design for the maximum operation safety Highly efficient DC-to-AC conversion minimizing energy loss.
• Intelligent cooling fan speed control determined by loads.
• N+X parallel redundancy framework design for future expansion
• Comprehensive status LED indicators “All maste” dynamic mechanism eliminates single point failure to optimize reliability. DSP Control
• Low power “Power Saving Mode” to conserve energy for less than 15W.
• Multiple protection: Input low voltage / Overload / Short circuit / Low battery alarm / Input over voltage / Over temperature
• Wall-Mount design for flexible placement

Specifications
Model: MAN-HF-1000
Output Power (Continuous): 1000W
Surge Rating: 2000W
Nominal Input Voltage: 24VDC
Output Voltage: 220/230/240VAC
Crest Factor: 3:1
Output Frequency: 50/60Hz+-0.1%
Efficiency: >90%
No Load Current Draw: <15W
Stand-by Current Draw: <5W
Output Waveform: Pure Sine Wave
Total Harmonic Distortion: <3% with Linear Load
Input Voltage Regulation: 21.0-30Vdc for 24V series
Output Voltage Regulation: 220/230/240Vac+-5%
Protection: Overload, short circuits, reverse polarity, over/under input voltage, over temperature
Operating Temperature: 0~40 (de-rating with 2.5%/ from 40 up to 60)
Dimensions (DxWxH): 350x180x88 mm
Weight: 4.0Kg
EMC: FCC part 15, EN55022 Class B
Communication Port: RS 232

Package Includes:
1 x Pure Sinewave Solar Inverter with Charger 24VDC 1000W
