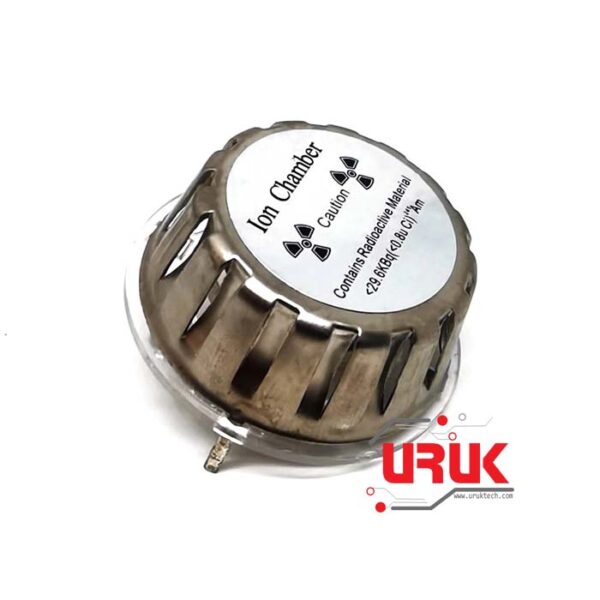

Ionization Chamber Smoke Detector / Sensor

The ionization chamber is the simplest of all gas-filled radiation detectors, and is widely used for the detection and measurement of certain types of ionizing radiation; X-rays, gamma rays, and beta particles. Conventionally, the term “ionization chamber” is used exclusively to describe those detectors which collect all the charges created by direct ionization within the gas through the application of an electric field. It only uses the discrete charges created by each interaction between the incident radiation and the gas, and does not involve the gas multiplication mechanisms used by other radiation instruments, such as the Geiger counter or the proportional counter.
Ion chambers have a good uniform response to radiation over a wide range of energies and are the preferred means of measuring high levels of gamma radiation. They are widely used in the nuclear power industry, research labs, radiography, radiobiology, and environmental monitoring.

Recommendations:
Supply voltage: DC 9V
Current consumption: 27±3pA
Output voltage: 5.6±0.4 V in clean air
Sensitivity: 0.6 ± 0.1 V at 2%/foot of smoke

Specifications:
Model: NAP-07 Ion Chamber Smoke Sensor
Diameter: 37mm
Ionization source characteristics and radiation safety performance:
The ionization chamber fitted with a high performance and low activity of Am-241 ionization
Ionization source activity: 0. 5uCi (18KBq. 0. 8uCi±10%) (30KBq±10%)
Ionization source a spectroscopy: peak: 4. 5MeV ± 10%, FW HM<0. 7MeV
Safety grading: standards (GB4075, IS02919. C64444)
Ionization chamber radiation dose rate at 25cm: 0. 03mGy/ (1mGy value lower than population dose standard)
Conditions: outer electrode and the source electrode voltage (Vdd supply voltage): 9V
Environment temperature: 20 + C: close to atmospheric pressure standard atmospheric pressure, clean air
Collecting electrode equilibrium potential: 5. 3~6. 5V
Collecting electrode potential with the smoke concentration change
Light reduction rate was 1% feet: 0. 6V
Light reduction rate was 4% feet: 2. 2V
Insulator leakage current (Max): 0. 5Pa
Capacitor (collection of extreme outer electrode + to the source base): 6.0pF

Package Includes:
1 x Ionization Chamber
