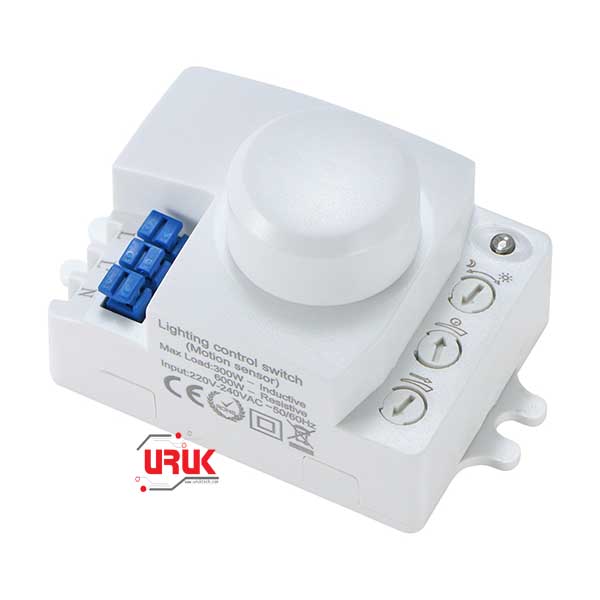

AC 220V 5.8GHz Microwave Motion Sensor Switch

Microwave sensor
This motion detector adopts a microwave sensor based on advanced technology which is safe and sensitive than infrared sensor, and the detection signal can penetrate through doors, glass panels or thin walls.
High Performance
It can provides high probability of detection, low nuisance alarm and resistant to rain, dog, wind, dust, snow and temperature extremes.
User-friendly extended sensing design
If someone continuously moves in the sensing area, the sensing signal will automatically extend the sensing time, and will not re-sensing after the light is extinguished.
Easy to install
The wire connection method is more scientific than other products. It has 2 inlet holes and 2 outlet holes. Easy to connect and install. And pluggable terminals are used. Easy and quick to complete the installation.
Wide use
It can be applied to any load, such as monitoring device, alarm equipment, LED lights, fluorescent lights, incandescent lights, exhaust fans, solenoid valves, etc.

Specifications:
Type: Sensor Switch
Material: plastic
Color: White
Power supply: 220-240V AC.
Load Power: 300W inductive load / 600W resistive load
Power Frequency: 50/60Hz
HF system: 5.8GHz±75MHz CW radar, ISM
Installation sit: ceiling mounting
Mounting Hight: Maximum 5 meters
Detection area: 2-8m
Time setting: 10sec to 12min
Detection angle: 360°
Light control: 5-2000LUX
Transmission Power: <0.2mW
Operating temperatures: -15°C to 70°C
Size: 6.8×4.1×3.9cm
Net weight: 46g

Package Includes:
1 x Sensor Switch.
