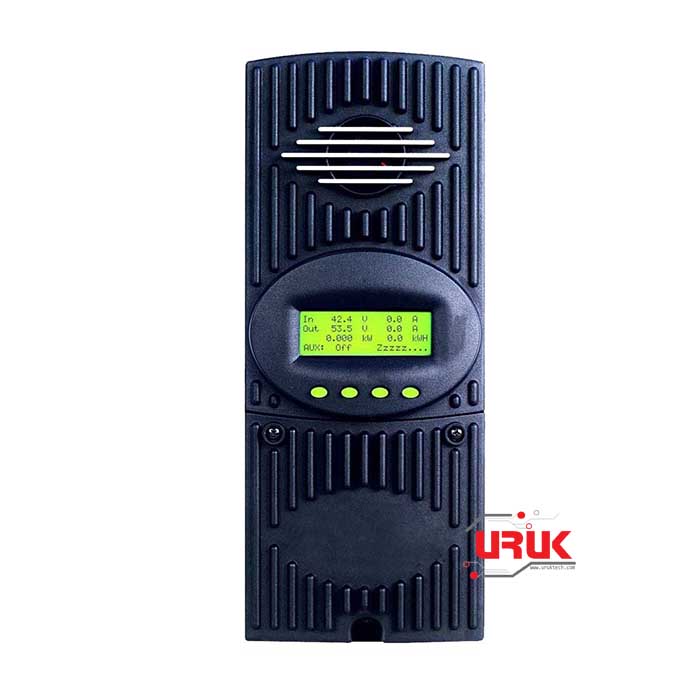

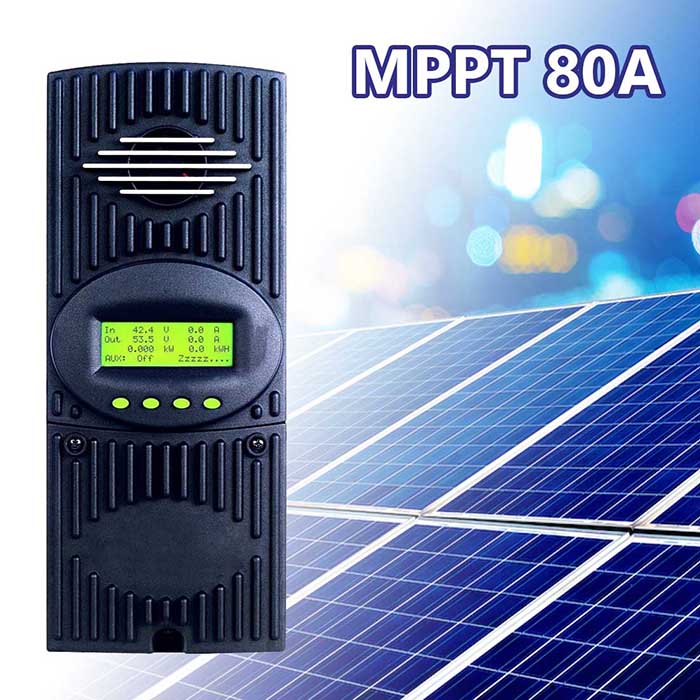

FLEXmax MPPT 80A Solar Charge Controller

The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers.
The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers.
Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 80 Amps, in ambient temperatures as high as 104°F (40°C).
The revolutionary features of the FLEXmax Charge Controllers including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank.
A built-in, backlit 80-character display shows the current status and logged system performance data for the last 128 days at the touch of a button.
The integrated network communications allow FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.
FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.

Features
– Increases PV Array Output by up to 30%.
– Advanced Continuous Maximum Power Point Tracking.
– Full Power Output in Ambient Temperatures up to 104°F (40°C).
– Battery Voltages from 12 VDC to 60 VDC.
– Programmable Auxiliary Control Output.
– Built-in 128 days of Data Logging.
– Fully Network Integrated and Programmable.

Displays
Text LCD display for operating parameters, fault messages and self test.

Options
– Menu-driven operation.
– Programming by buttons.

Certificates
Compliant with European Standards (CE).

Data Logging
Last 128 days of Operation – Amp Hours, Watt Hours, Time in Float, Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of production

Specifications
Nominal Battery Voltages: 12, 24, 36, 48, or 60 VDC (Single model – selectable via field programming at start-up)
Maximum Output Current: 80 amps @ 104° F (40°C) with adjustable current limit
Maximum Solar Array STC Nameplate: 12 VDC systems 900 Watts / 24 VDC systems 1800 Watts / 48 VDC systems 3600 Watts / 60 VDC Systems 4500 Watts
NEC Recommended Solar Array STC Nameplate: 12 VDC systems 750 Watts / 24 VDC systems 1500 Watts / 48 VDC systems 3000 Watts / 60 VDC Systems 3750 Watts
PV Open Circuit Voltage (VOC): 150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum
Standby Power Consumption: Less than 1 Watt typical
Power Conversion Efficiency: 97.5% @ 60 Amps in at 48 VDC System voltage – Typical
Charging Regulation: Five Stages: Bulk, Absorption, Float, Silent and Equalization
Voltage Regulation Set points: 10 to 80 VDC user adjustable with password protection
Equalization Charging: Programmable Voltage Set point and Duration – Automatic Termination when completed
Battery Temperature Compensation: Automatic with optional RTS installed / 5.0 mV per °C per 2V battery cell
Voltage Step-Down Capability: Can charge a lower voltage battery from a higher voltage PV array – Max 150 VDC input
Programmable Auxiliary Control Output: 12 VDC output signal which can be programmed for different control applications (Maximum of 0.2 amps DC)
Status Display: 3.1″ (8 cm) backlit LCD screen – 4 lines with 80 alphanumeric characters total
Network Cabling: Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)
Operating Temperature Range: Minimum -40° to maximum 60° C (Power capacity of the controller is automatically derated when operated above 40° C)
Conduit Knockouts: One 1″ (35mm) on the back; One 1″ (35mm) on the left side; Two 1″ (35mm) on the bottom
Weight: 5.3 kg
Dimensions: 40 x 14 x 10 cm
Menu Languages: English & Spanish

Package Includes:
1 x MPPT 80A Solar Charge Controller
