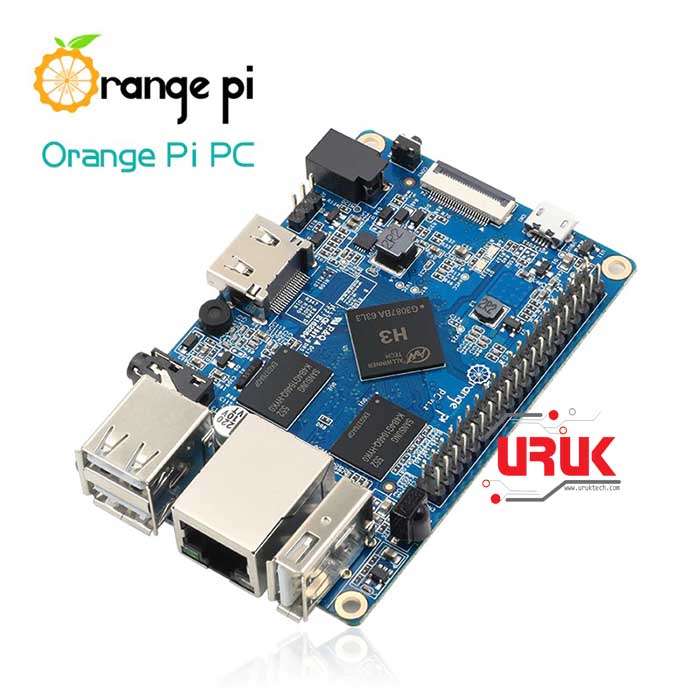

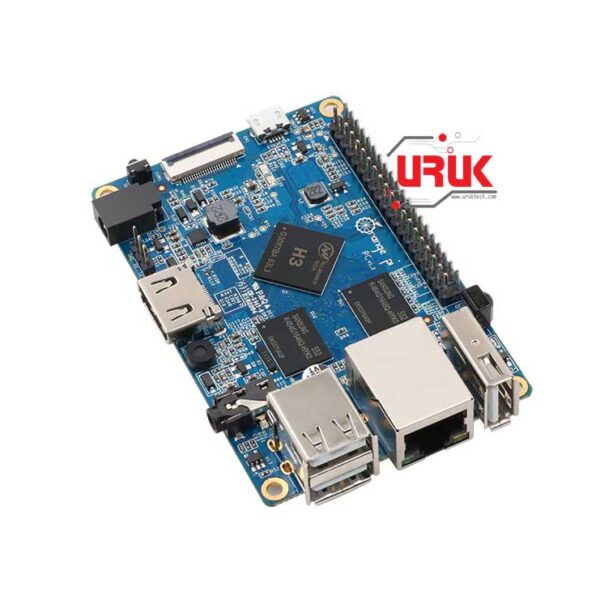

Orange Pi PC H3 Quad-Core 1GB DDR3 RAM

Availability:

In stock


كومبيوتر في بورد واحد صغير بوزن 38 غم فقط! بورد اورنج باي PC بمعالج Cortex-A7 رباعي النواة، مع RAM بحجم 1GB نوع DDR3. البورد عبارة عن جهاز كومبيوتر متكامل مع منافذ USB ومنفذ للشاشة نوع HDMI ويحتوي البورد على كثير من المزايا منها إمكانية تشغيل الألعاب والتصفح والتحكم ويعمي كسيرفر والى اخره من التطبيقات حيث يمكن ايصاله بالأنترنت عبر منفذ الـ Ethernet وبشكل مباشر. يحتوي البورد على GPIO كما هو الحال في الرازبيري باي ويمكن تشغيل البورد بعدة أنظمة تشغيلية اهما اللينك والأندرويد وحتى نسخة الرازبيان الخاصة بالرازبيري باي.

98,750 د.ع

In stock

Compare

Orange Pi PC H3 Quad-Core 1GB DDR3 RAM

It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM. You can use this board to build: A computer, a wireless server, Games, Music and sounds, HD video, a speaker, Android
Scratch, and Pretty much anything else, because Orange Pi PC is open source
Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.

Specification
CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU: Mali400MP2 GPU @600MHz
Supports: OpenGL ES 2.0
Memory (SDRAM): 1GB DDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB) / MMC card slot
Onboard Network: 10/100M Ethernet RJ45
Video Input: A CSI input connector Camera supports 8-bit YUV422 CMOS sensor interface, CCIR656 protocol for NTSC and PAL, SM pixel camera sensor, video capture solution up to 1080p@30fps
Audio Input: MIC
Video Outputs: Supports HDMI output with HDCP, HDMI CEC, and HDMI 30 function, Integrated CVBS, and simultaneous output of HDMI and CVBS
Audio Output: 3.5 mm Jack and HDMI
Power Source: DC input can supply power, but USB OTG input don’t supply power
Ports: USB 2.0 Ports, Three USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button (SW4)
GPIO: Low-level peripherals 40 Pins Header
LED: Power led & Status led
Key: IR input, POWER
Supported OS: Android Ubuntu, Debian Image
Product size: 85 mm × 55mm
Weight: 38g

Package Includes:
1 x Orange Pi PC H3 Quad-Core DDR3 1GB

SKU: 720 Category:
  • CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K
  • GPU: Mali400MP2 GPU @600MHz
  • Supports: OpenGL ES 2.0
  • Memory (SDRAM): 1GB DDR3 (shared with GPU)
  • Onboard Storage: TF card (Max. 32GB) / MMC card slot
  • Onboard Network: 10/100M Ethernet RJ45
  • Video Input: A CSI input connector Camera supports 8-bit YUV422 CMOS sensor interface, CCIR656 protocol for NTSC and PAL, SM pixel camera sensor, video capture solution up to 1080p@30fps
  • Audio Input: MIC
  • Video Outputs: Supports HDMI output with HDCP, HDMI CEC, and HDMI 30 function, Integrated CVBS, and simultaneous output of HDMI and CVBS
  • Audio Output: 3.5 mm Jack and HDMI
  • Power Source: DC input can supply power, but USB OTG input don’t supply power
  • Ports: USB 2.0 Ports, Three USB 2.0 HOST, one USB 2.0 OTG
  • Buttons: Power Button (SW4)
  • GPIO: Low-level peripherals 40 Pins Header
  • LED: Power led & Status led
  • Key: IR input, POWER
  • Supported OS: Android Ubuntu, Debian Image
  • Product size: 85 mm × 55mm
  • Weight: 38g
