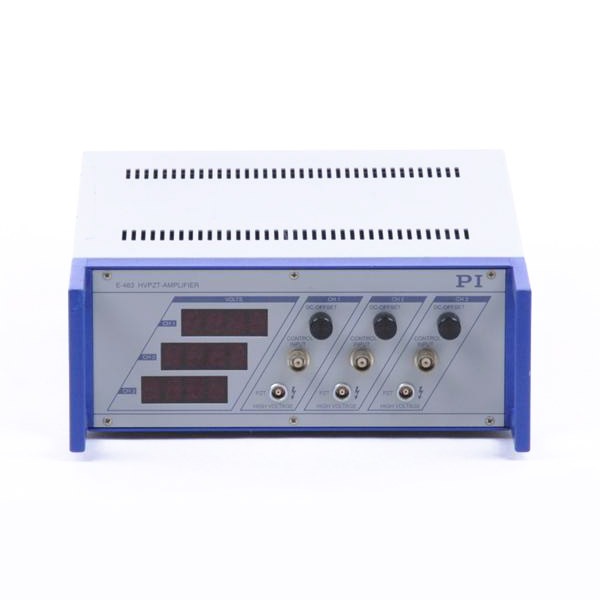

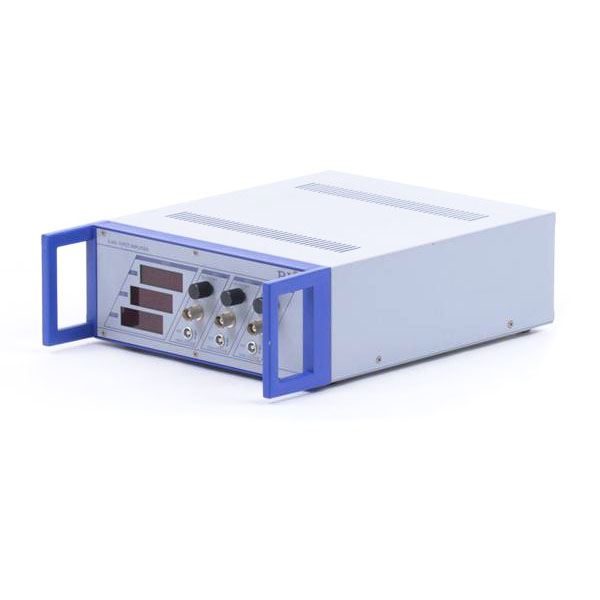

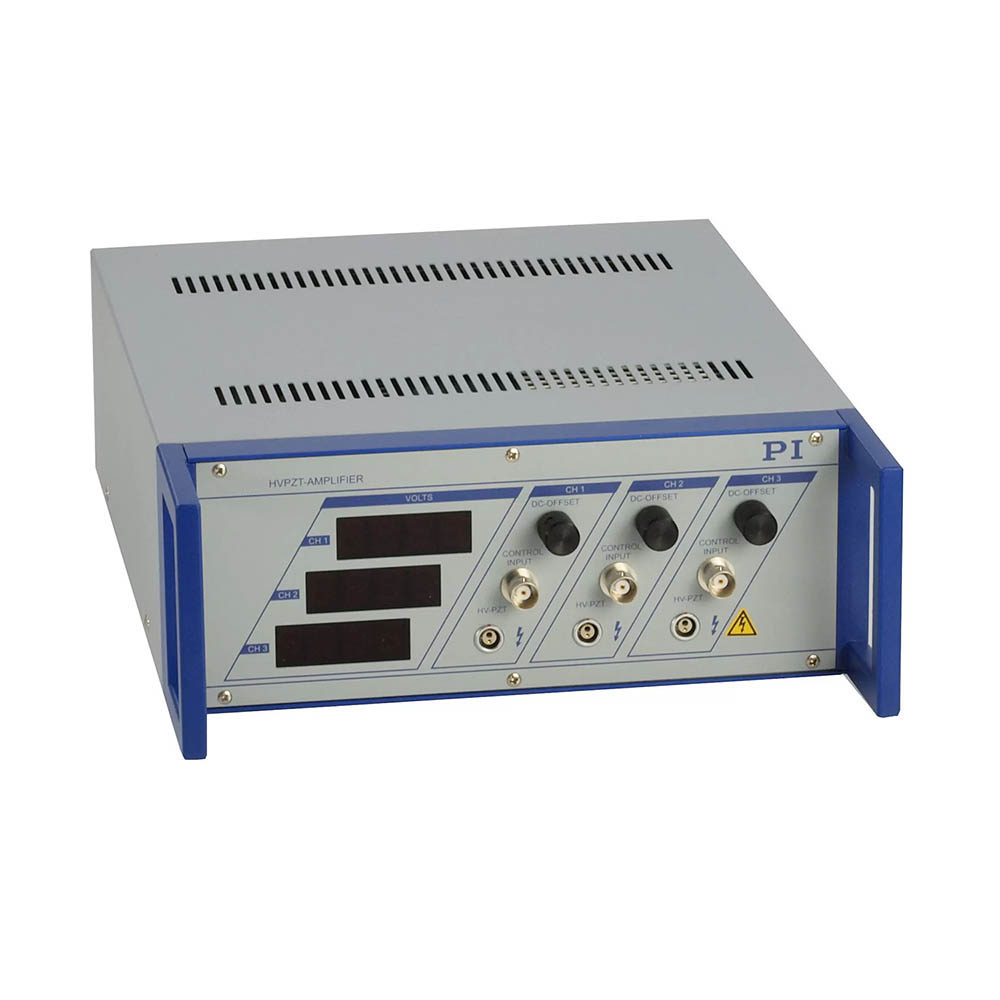

Piezo Voltage Amplifier, 3-Axis, Discrete PZT Actuators

The E-463.00 is a bench-top piezo driver for high-voltage PZTs. It contains three independent low-noise, 4-quadrant amplifiers that can output and sink a peak current of 4 mA and an average current of 3 mA each.

Note:
The device is sold as a used product and is not subject to UrukTech’s terms and conditions of the warranty of, and it works 100% with a condition of operating inspection before purchase.

Features:

• 3 Independent Channels
• 3 x 6 W Peak Power
• 3 LED Voltage Displays
• Output Voltage Range 0 to – 1500 V

Specifications:
Model: E-463.00
Function: Power amplifier
Channels: 3
Maximum output power: 6 W / channel
Peak output current <5ms: 4 mA / channel
Average output current >5ms: 2 mA / channel
Current limitation: Short-circuit proof
Voltage gain: -150 ±1
Polarity: Negative
Control input voltage: 0 to +10 V
Output voltage: 0 to -1500 V
DC-offset setting: 0 to -1000 V at output with 10-turn pot.
Input impedance: 1 MW
Display: 3 x 31/2-digits, LED
Control input sockets: 3 x BNC
PZT voltage output sockets: 3 x LEMO ERA.0A.250.CTL
Dimensions: 236 x 88 x 273 mm + handles
Weight: 4.3 kg

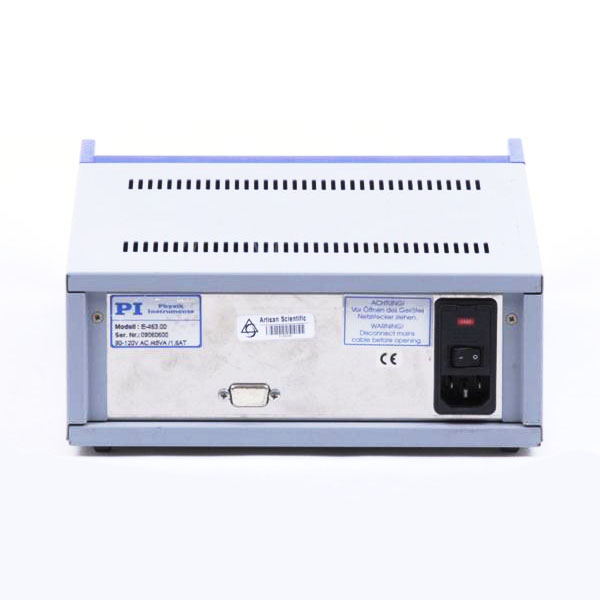

Operating voltage: 90-120 / 220-240 VAC, 50-60 Hz (linear P/S)

Package Includes:
1 x Piezo Voltage Amplifier, 3-Axis, Discrete PZT Actuators
